运算放大器 IL4558N/D替代LM4558

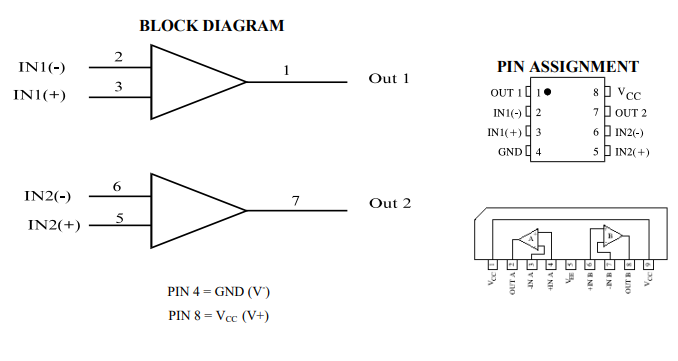

Dual Operational Amplifiers

The IL4558 is dual general purpose operational amplifiers.The high common-mode input voltage range and the absenceoflatch-up make these amplifiers ideal for voltage follower application.The devices are short circuit proteeted and the internal frequencyCompensation ensures stability without exteral components.

FEATURE

• Short Circuit Proteetion

• Wide common-mode and differential ranges

• No frequeney compensation required

• Low power consumption

• No latch-up

• 3 MHz unity gain bandwidth guaranteed

• Gain and phase match between amplifiers

• Possible to exchange the position of Pin9 for Pinlbecause ofPin Connection being symmetric(lL4558S only)
