运算放大器 IL358N/D替代LM358

Low Power Dual Operational Amplifier

The IL358 contains two independent high gain operational amplifiers withinternal frequency compensation. The two op-amps operate over a widevoltage range from a single power supply. Also use a split power supply. Thedevice has low power supply current drain, regardless of the power supplyvoltage. The low power drain also makes the IL358 a good choice for battery

operation.When your project calls for a traditional op-amp function, now you canstreamline your design with a simple single power supply. Use ordinary+5VDC common to practically any digital system or personal computerapplication, without requiring an extra 15V power supply just to have the  interface clectronics you need.The IL358 is a versatile, rugged workhorse with a thousand-and-one uses,from amplifying signals from a variety of transducers to de gain blocks, orany opamp function. The attached pages offer some recipes that will haveyour project cooking in no time.

• Intemally frequency compensated for unity gain

• Large DC voltage gain: 100dB

• Wide power supply range:3V~32V (or ±1.5V~±16V)

• Input common-mode voltage range includes ground

• Large output voltage swing: 0V DC to Voc-1.5V DC

• Power drain suitable for battery opcration

• Low input offset voltage and offset current

• Differential input voltage range cqual to the power supply voltage

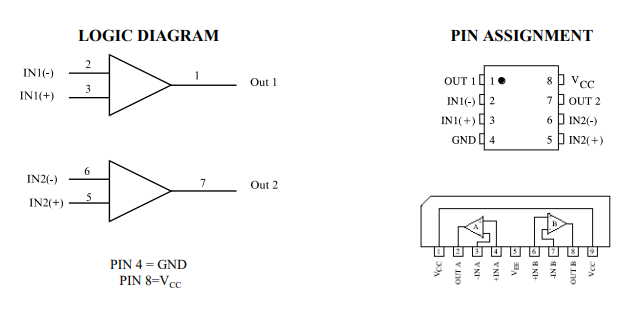

• Possible to exchange the position of Pin9 for Pinl because of PinConnection being symmetrie (L358S only)
