运算放大器 IL2904N/D替代LM2904

Low Power Dual Operational Amplifier

The IL2904 contains two independent high gain operational amplifierswith internal firequency compensation, The two op-amps operate over a widevoltage range firom a single power supply. Also use a split power supply. Thedevice has low power supply current drain, regardless of the power supplyvoltage. The low power drain also makes the IL2904 a good choice for

battery operation.

When your project calls for a traditional op-amp function, now you canstreamline your design with a simple single power supply. Use ordinary+5VDC common to practically any digital system or personal computerapplication, without requiring an extra 15V power supply just to have the  interface clectronics you need.

The IL2904 is a versatile, rugged workhorse with a thousand-and-oneuses, from amplifying signals from a variety of transducers to de gain blocks.or any op-amp function. The attached pages offer some recipes that will haveyour projeet cooking in no time.

• Internally frequency compensated for unity gain

• arge DC voltage gain: 100dB

• Wide power supply range:3V~32V(or ±1.5V~±16V)

• Input common-mode voltage range includes ground

• Large output voltage swing: 0V DC to Vcc1.5V DC

• Power drain suitable for battery operation

• Low input offset voltage and offset current

• Differential input voltage range cqual to the power supply voltage

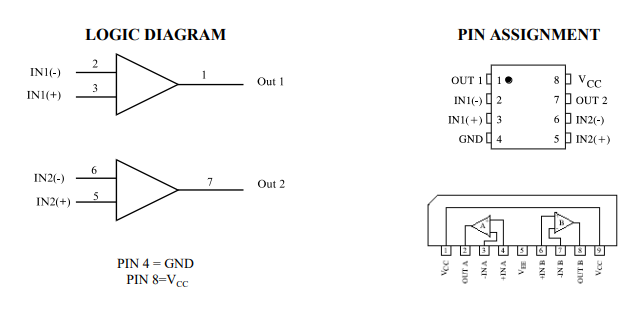

• Possible to cxchange the position of Pin9 for Pinl because of PinConnection being symmetrie (IL2904S only)
